The Standardisation Internationale de Tricotage (SIT)/Groupe Superba produced a number of knitting machines that all shared the "same" electronic needle bed. The difference was the way the machines were programmed. The knitting machines include S47 (pressure pad), S44 (peg board), S48 (light scanner), MT624 and System 9000.

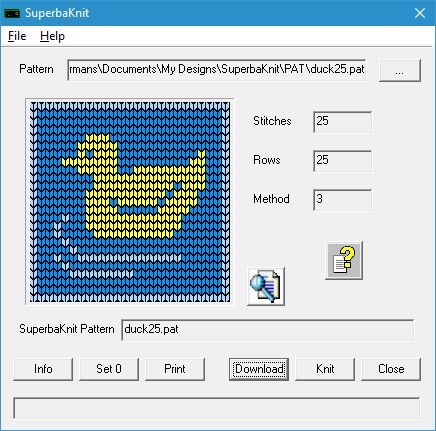

We have developed the SuperbaKnit hardware and software that provides the patterning functionality for electronic Superba, Singer, White and Phildar knitting machines. Unique patterning can now be done over the full width of the needle bed. With the SuperbaKnit you can knit existing patterns without the need of any additional software. You can create your own patterns with a graphics package of your choice.
| Superba | Singer | Phildar | White | SuperbaKnit | Note |
|---|
| | 400 | | 1402 | A | Pressure Pad, single bed |
| | MT610 | | | A | Pressure Pad, double bed |
| S47 | Memo II/600 | D115 | 1502 | A | Pressure Pad, double bed |
| S42 | 2100 | | | B | Peg Board, single bed |
| S44 | 2200 | D110 | | B | Peg Board, double bed |
| S46 | 23xx | | | B | Light Scanner, single bed |
| S48 | 2330 | D120 | 1602 | B | Light Scanner, double bed |
| 624 | MT624/MT2140 | | | A | |
| 9000 | 9000/MT700 | | | A | |
| Pattern formats for above machines |
|---|
| PAT | DesignaKnit |
BPT | Brother |
BMP | Windows BitMaP |
CST | CompuStrick |
| CUT | Passap Creation |
PCX | System 90 INTO SHAPE |
STC | Stitch Painter pattern |
STB | Stitch Painter brush |
| DAT | Silver Reed PC10 |
STP | DesignaKnit |
TXT | Notepad |
NIT | KnitPad |
| PBM | Portable Bit Map |
PGM | Portable Gray Map |
PPM | Portable Pixel Map |
KSW | Knitt Styler pattern |
| KSL | Knitt Styler lib |
QPA | DesignaKnit bitmap |
MT | Singer 9000 pattern |
MTF | System 90 INTO SHAPE |
| Patterns included with software |
|---|
| Memo II | Light Scanner | Peg Board | MT624 | Singer 9000 |
| Variations |
|---|
| Normal |
Double Rows |
Double Stitches |
Upside Down |
| Negative |
Reversed |
Spaced |
Exchange |
| Mirror Horizontal |
Mirror Vertical |
Chevron |
Reflection |
| Birdseye Left |
Birdseye Right |
|
|
| Center |
Repeat |
Wrap |
Carriage left |
| End Needles |
Width |
Margins |
Pattern Indicators |
| Jacquard |
| Skip Stitch |
Skip Stitch with Ribber |
Fairisle Rib |
| Jacquard PC10 method |
Jacquard PC10 method with Ribber |
|
| Most variations above can be combined |
| Lace |
| Simple Lace |
Fashion Lace |
|
| 32 bit Operating Systems |
| Windows 2003 | Windows XP | Windows Vista | Windows 2008 | Windows 7 | Windows 8 & 8.1 | Windows 10 |
| 64 bit Operating Systems |
| Windows XP x64 | Windows Vista x64 | Windows 7 x64 | Windows 8 & 8.1 x64 | Windows 10 x64 | |
| Windows 2003 x64 | Windows 2008 x64 | Windows 2008 R2 x64 | Windows 2012 & 2012 R2 x64 | Windows 2016 x64 | Windows 2019 x64 | |
| Model | PC Connectivity | Cable | Power |
|---|
| SuperbaKnit USB | Series A USB connector | USB | External 100-240 V power supply |
| Model | Diagnostics |
|---|
| SuperbaKnit | LED Green | Power is applied to SuperbaKnit |
| | LED Red/Green | Needle is selected or not selected |
| | LED Red/Green | Green: no connectivity, Red: USB |
| Design Software | Manufacturer | Comment |
|---|
| DesignaKnit 9 | Soft Byte | Use DK9 or SuperbaKnit software for knitting |
| DesignaKnit 8 | Soft Byte | Use DK8 or SuperbaKnit software for knitting |
| DesignaKnit 7 | Soft Byte | Use DK7 or SuperbaKnit software for knitting |
| DesignaKnit 6 | Soft Byte | Use SuperbaKnit software for knitting |
| Stitch Painter | Cochenille | Use SuperbaKnit software for knitting |
| Journal Six | Jennifer L Schmidt | Use SuperbaKnit software for knitting |
| Win_Crea | Chris Dixon | Use SuperbaKnit software for knitting |
|
|
